Radiation-tolerant hardware products designed and validated for next generation space systems

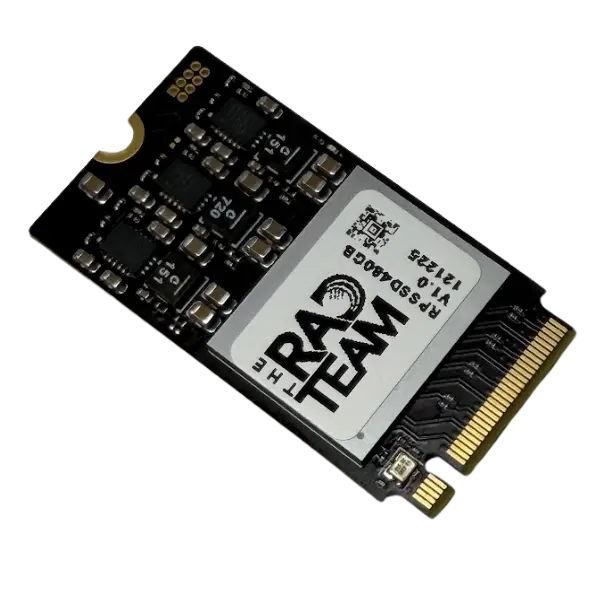

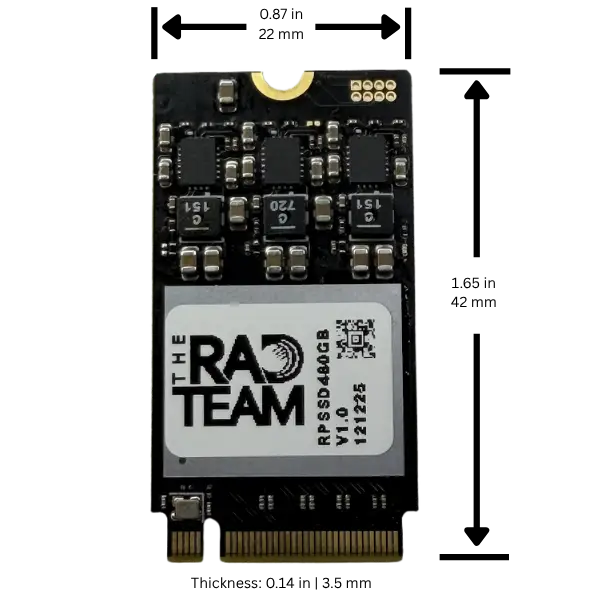

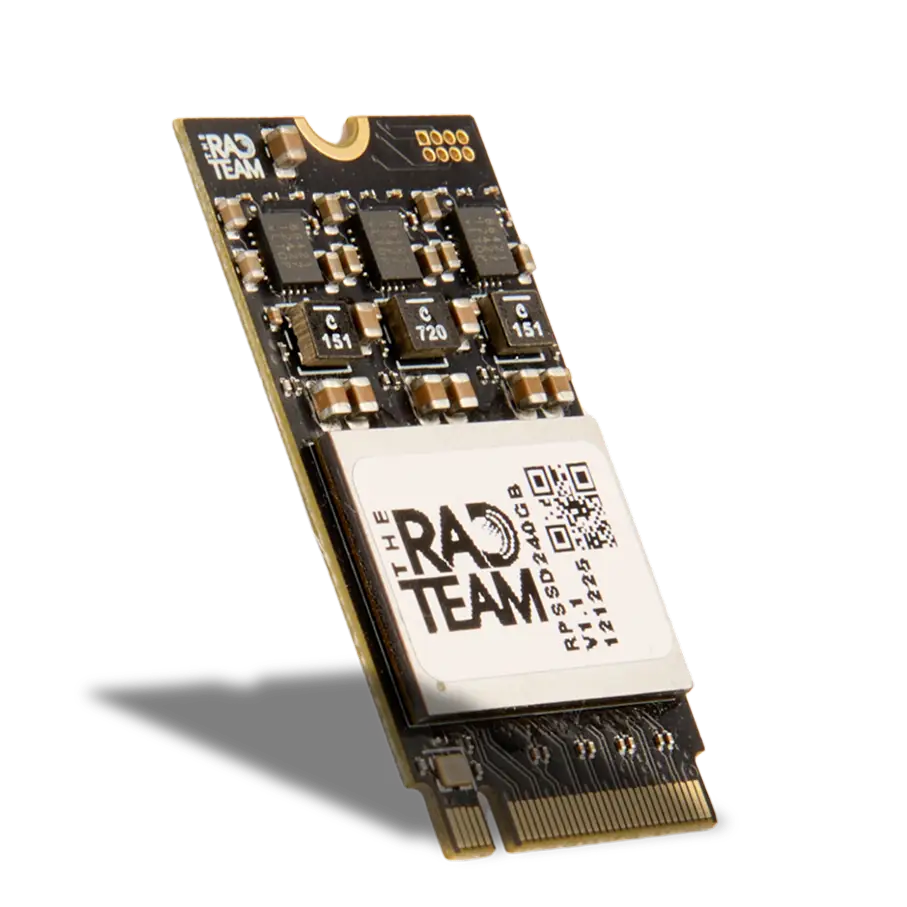

RPSSD480GB Series
Radiation Tolerant Solid State Drive
The RPSSD480GB is a standard M.2 form factor solid-state drive. Designed for an array of space missions including LEO, MEO, GEO, Lunar, and beyond.
It offers a balance of performance, reliability, and cost efficiency, the RPSSD480GB is ideal for launch vehicles, SmallSats, satellite constellations and other spacecraft where cost, SWaP, and fast delivery are mission drivers.
Application
Launch vehicles, SmallSats, satellite constellations, and other spacecraft.
New Space platforms where cost, SWaP, and fast delivery are mission drivers
Key Features
Radiation Tolerance
Destructive SEE immunity up to 37 MeV·cm²/mg
Total Ionizing Dose (TID) up to 30 krad(Si)
Mechanical & Thermal

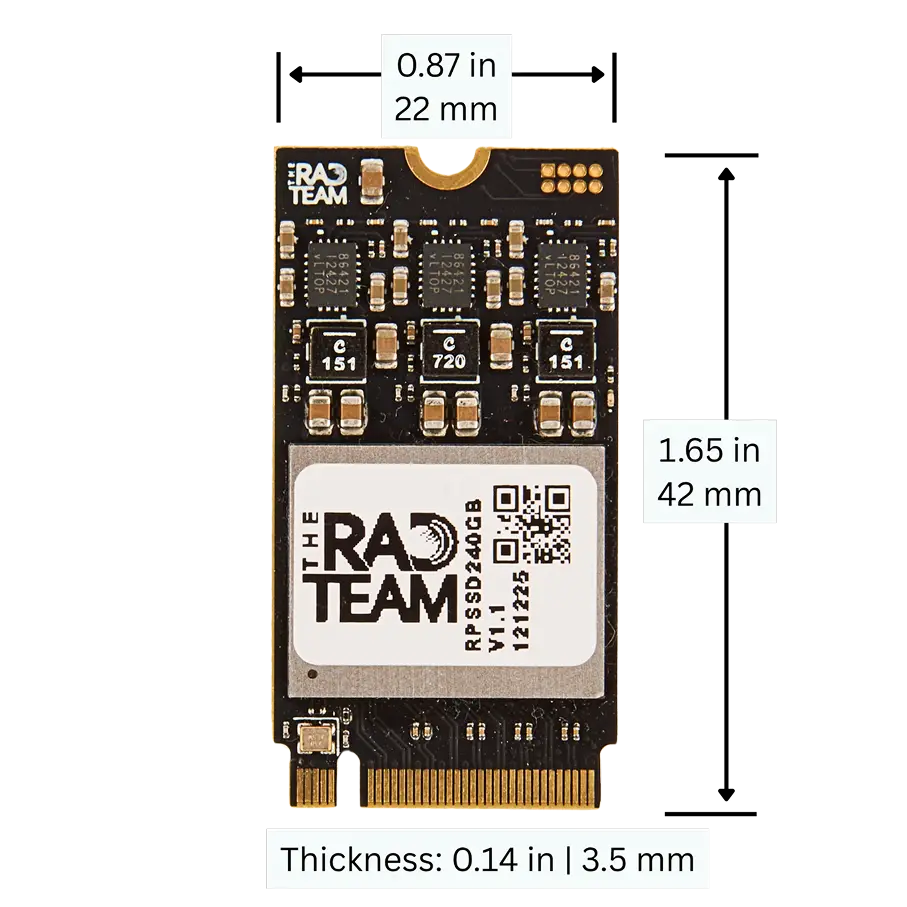

Standard M.2 2242 form factor
Operating from –40 °C to +85 °C
Specifications
Capacity 480 GB
< 2.5 W during write, < 2 W during read, < 300 mW idle
Sequential read up to 1,753 MBytes/s, random read 4K up to 140,000 IOPS
Sequential write up to 864 MBytes/s, random write 4K up to 134,000 IOPS
PCIe 3.0 x 4 Lanes
Supports NVMe 1.3 commands

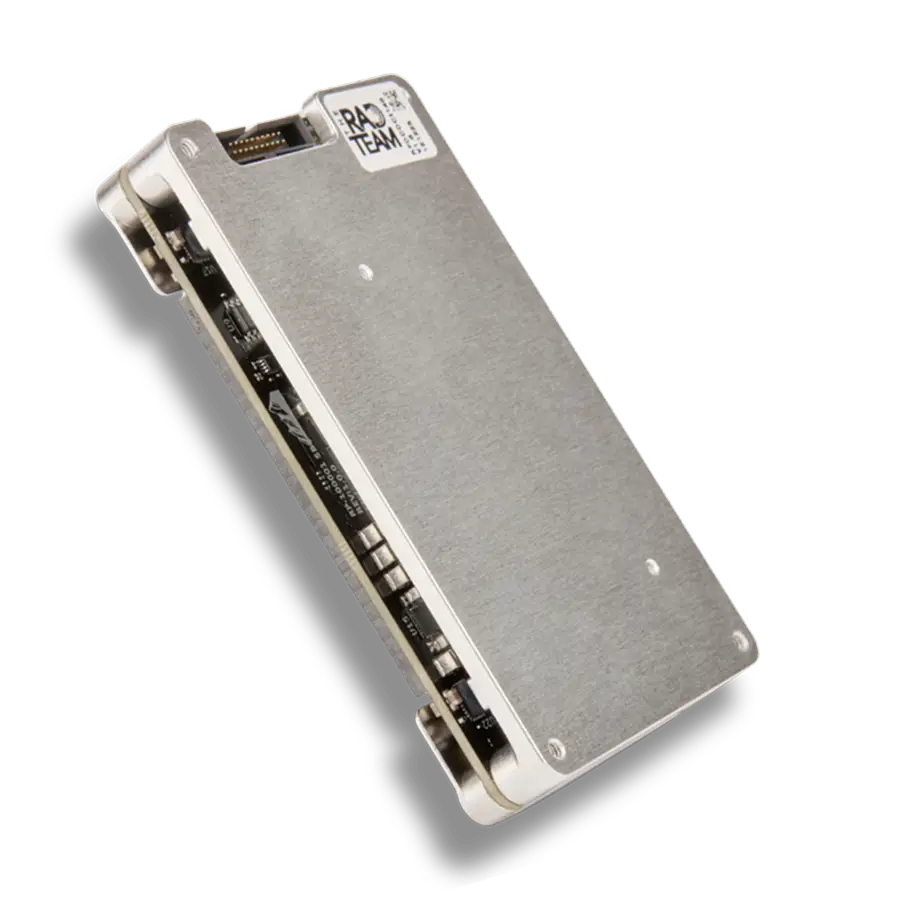

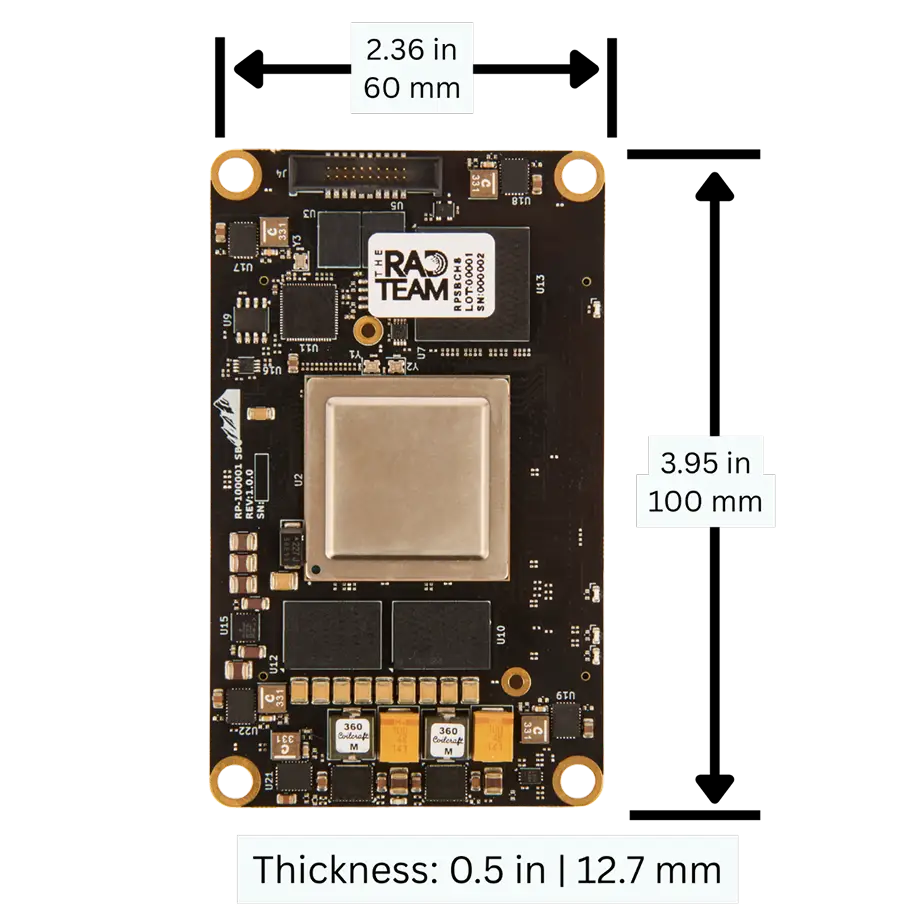

RPSBCH8 Series
Radiation Tolerant Single Board Computer
The RPSBCH8 is a high performance compute module designed for an array of space missions including LEO, MEO, GEO, Lunar, and beyond.
Application
Offering a balance of performance, reliability, and cost efficiency, the RPSBCH8 is ideal for launch vehicles, SmallSats, satellite constellations and other spacecraft where cost, SWaP, and fast delivery are mission drivers.
Key Features
Radiation Tolerance
Destructive SEE immunity up to 37 MeV·cm²/mg
Total Ionizing Dose (TID) up to 30 krad(Si)
Mechanical & Thermal
Standard M.2 2242 form factor
Operating from –40 °C to +85 °C
Specifications
Operating from –40 °C to +85 °C
8x 2.0 GHz Arm Cortex-A72 cores
8x 1.0 GHz Arm Cortex-R5F cores
2x 1 GB SPI Flash
320GFLOPS of DSP
32TOPS AI accelerator
H.264/H.265 Encode/Decode
Up to 16 GB ECC LPDDR4X
IMG BXS-4-64 GPU
4x PCIe 3.0
MIPI CSI interface
Display Port interface
4x 100/1000BASE-T
1x USXGMII/XFI Ethernet

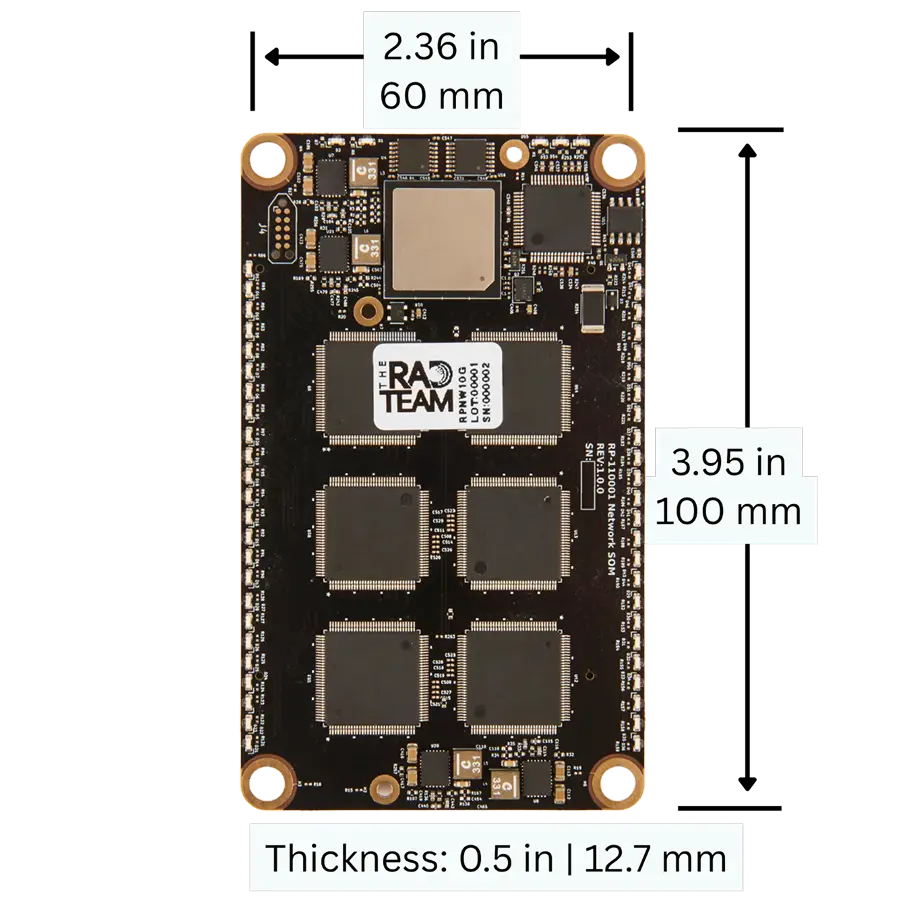

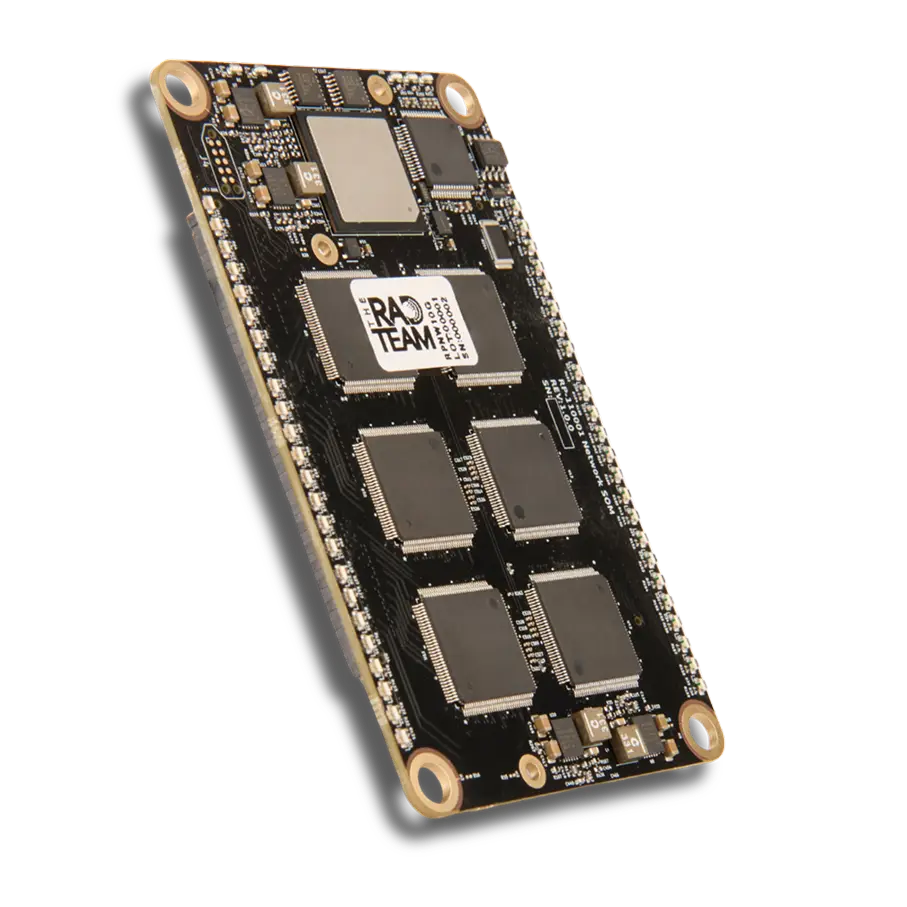

RPNW10G Series
Radiation Tolerant Network Switch
The RPNW10G is a 28 port network switch module. Designed for an array of space missions including LEO, MEO, GEO, Lunar, and beyond.
Application
Offers a balance of performance, reliability, and cost efficiency, the RPNW10G is ideal for launch vehicles, SmallSats, satellite constellations and other spacecraft where cost, SWaP, and fast delivery are mission drivers.
Key Features
Radiation Tolerance
Destructive SEE immunity up to 37 MeV·cm²/mg
Total Ionizing Dose (TID) up to 30 krad(Si)
Mechanical & Thermal
Operating from –40 °C to +85 °C
Specifications
24 x 100/1000BASE-T Ethernet ports
4 x 10GBASE-KR > 100 Gbps Ethernet bandwidth
IEEE 1588v2 support
TSN support

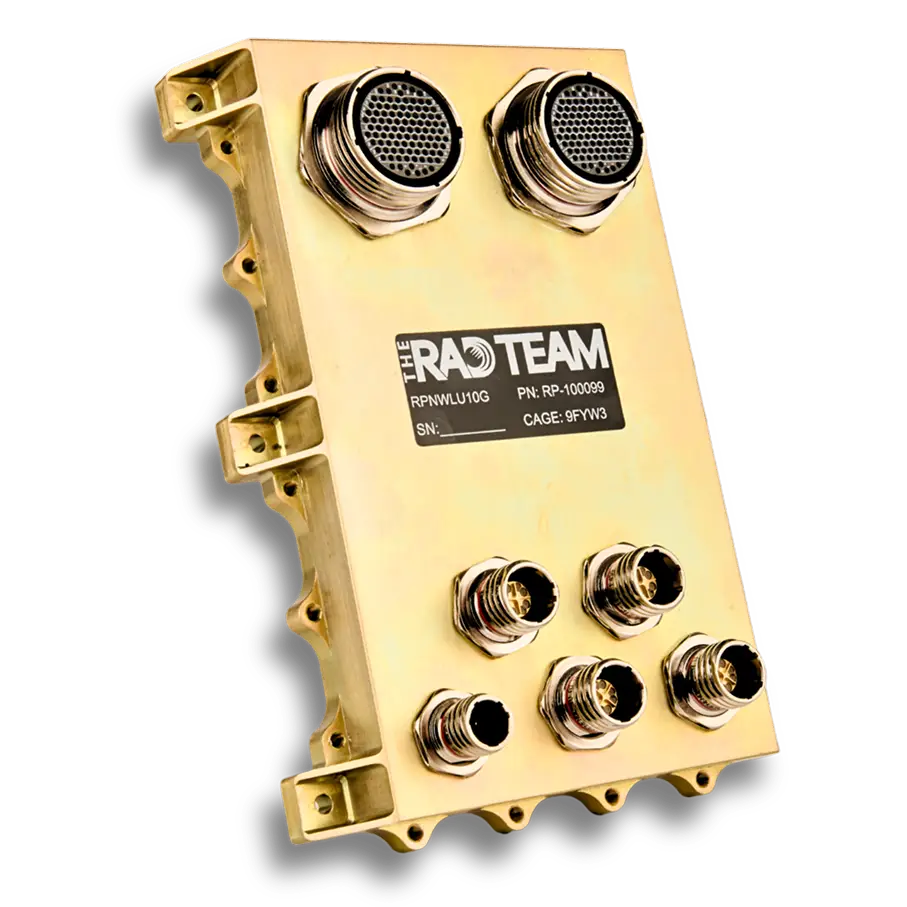

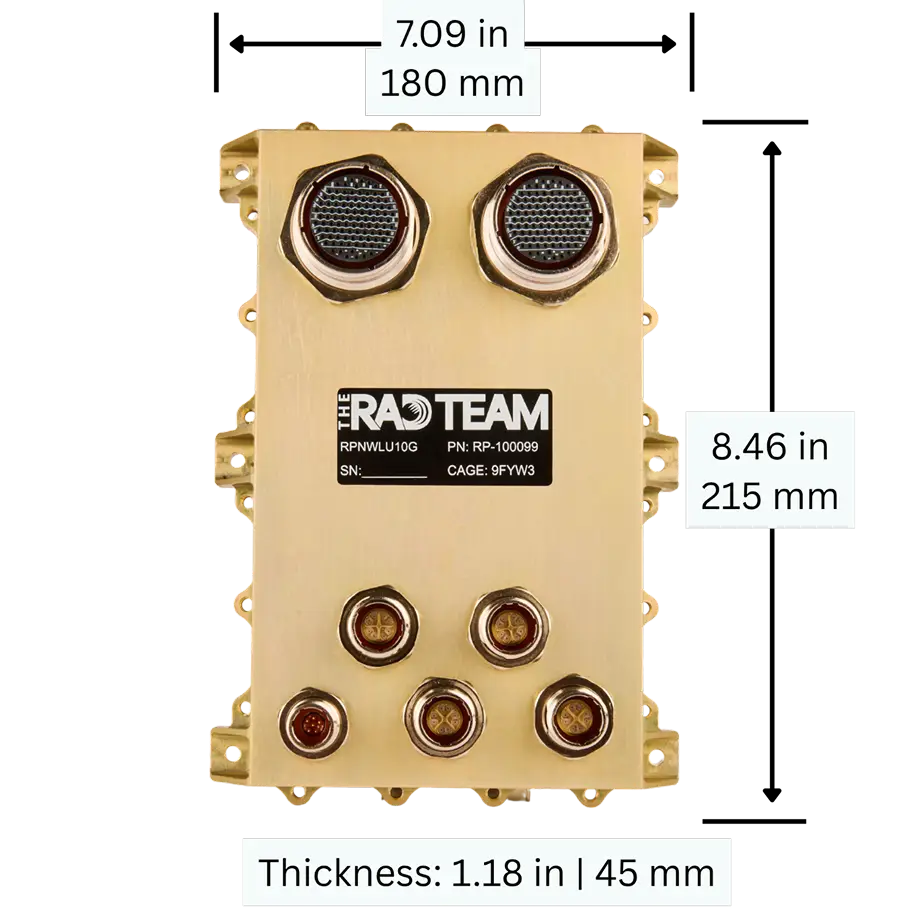

RPNWLRU10G Series
Radiation Tolerant Network Switch
The RPNWLRU10G is a 28 port network switch line replaceable unit. Designed for an array of space missions including LEO, MEO, GEO, Lunar, and beyond.
Application
Offers a balance of performance, reliability, and cost efficiency, the RPNWLRU10G is ideal for launch vehicles, SmallSats, satellite constellations and other spacecraft where cost, SWaP, and fast delivery are mission drivers.
Key Features
Radiation Tolerance
Destructive SEE immunity up to 37 MeV·cm²/mg
Total Ionizing Dose (TID) up to 30 krad(Si)
Mechanical & Thermal
Operating from –40 °C to +85 °C
Specifications
Input voltage: 16 V to 36 V
24x 100/1000BASE-T Ethernet ports
4x 10GBASE-T Ethernet ports
> 100 Gbps Ethernet bandwidth
IEEE 1588v2 Support
TSN Support
Hardware Support
Design support from day one, to define requirements, guide architecture, and reduce development risk
Database
EEE BoM Analysis
We provide a current status of your electronics designs with regards to radiation data by reviewing all publicly available data as well as The Rad Teams internal database to provide a disposition of radiation reliability for each individual IC.
Design Mitigation
We support radiation driven design, including mitigation of single-event effects (SEEs), to help ensure hardware is robust, reliable, and ready for the space environment.
Part Selection
Using our internal parts database and deep spacecraft design experience, we help teams select the right parts faster and make informed decisions on performance, availability, and mission fit.
Hardware Design
Radiation-tolerant hardware products designed and validated for demanding space environments
We provide end-to-end spacecraft hardware design services, combining electrical, software, and mechanical engineering to deliver integrated, mission-ready solutions. With deep design experience across space systems, we help customers move efficiently from concept through qualified hardware.
Our team works faster and smarter by drawing on our extensive design and radiation mitigation experience to accelerate development, improve component selection, and reduce program risk. This allows us to produce high-quality designs that are practical to build, aligned with mission requirements, and optimized for the space environment.
